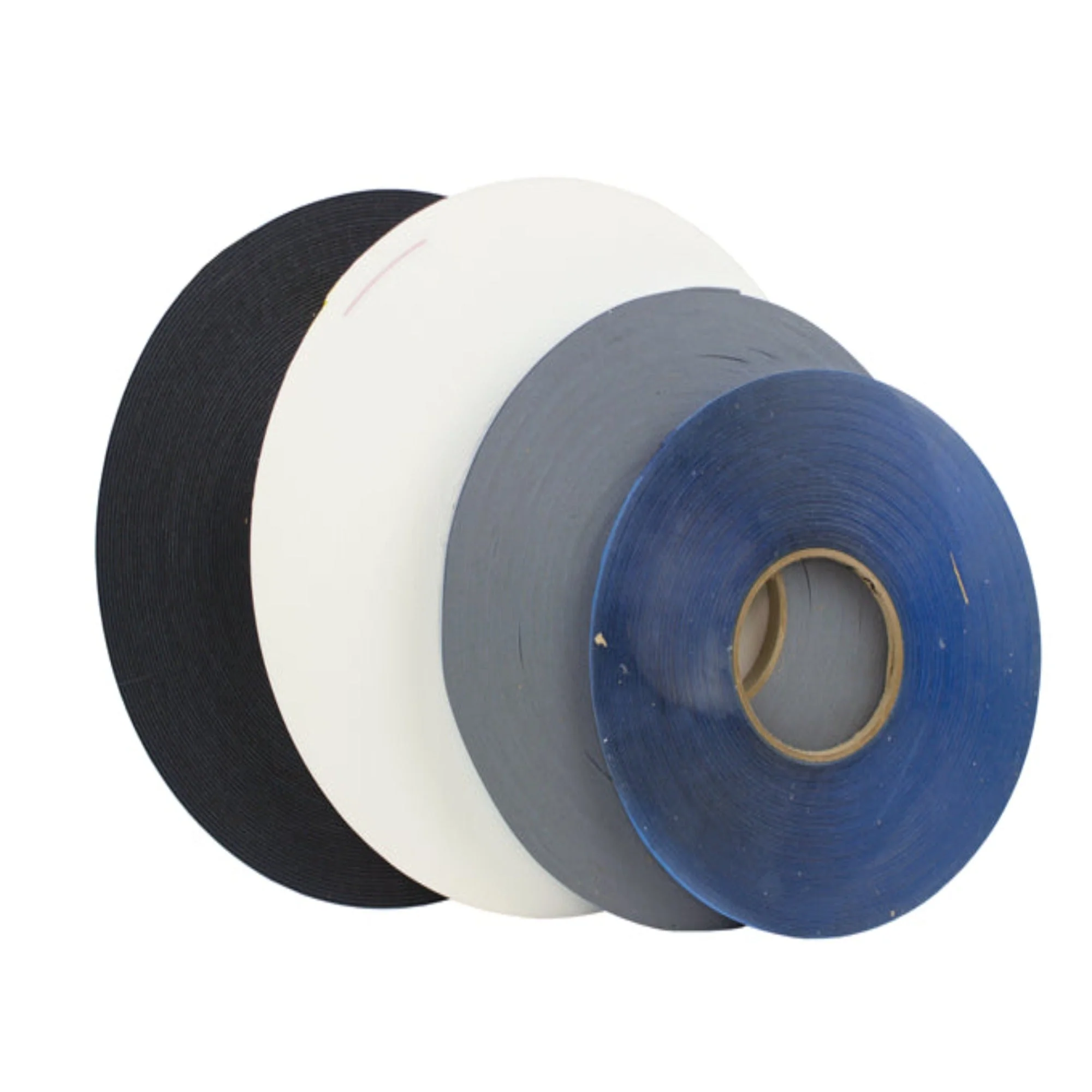

AC683 DOUBLE COATED FOAM MOUNTING TAPE
Product AC683
Primary Use:Ā Ideal for mounting signs, wire clips, moldings, reflectors, molded and extruded plastics, hardware, and more. AC683 offers moderate tack, excellent shear strength, and adhesion to most surfaces.
Description:Ā AC683 is a white closed-cell, cross-linked polyethylene foam with a density of 4lb + 6lb, coated on both sides with synthetic rubber adhesive.
Liner:Ā 60# standard silicone-treated Densified Kraft.
Typical Physical Properties:
- Thickness Liner (nominal):Ā 3.5 mils for all products.
- Peel Adhesion:Ā 160 oz/in (cohesive) based on PSTC #101 with adhesives coated directly to 1 mil polyester film. Note: Peel tests are performed as per PSTC #101, which states one minute maximum dwell time. Longer residence time generally yields higher peel values for acrylic adhesives.
- Shear Adhesion:Ā PSTC #107; Modified, 1000 gm/sq in @ 72Ā°F, no dwell. Exposed side and liner side both show no creep for 14+ days.
Product Features:
- Low Cost:Ā Economical solution.
- Gap Filling:Ā Foam carrier facilitates bonding to irregular surfaces.
- Excellent Shear Strength:Ā Provides strong adhesion.
- Closed Cell Foam:Ā Does not absorb water.
- Easy Die-Cutting:Ā Foam easily die-cuts with clean edges.
Service Temperature:Ā 30Ā°F to 150Ā°F. Note: This data is based on limited testing and under no load. Practical service temperature depends on various factors, including substrates, environmental conditions, and application method. Recommended application temperature is 68Ā°F to 100Ā°F.
Notes:
- Surfaces to be bonded should be dry, clean, and free from grease and oil.
- Not suitable for lamination to materials containing migrating plasticizers.
Shelf Life:Ā Six months from date of shipment when stored under cool, dry conditions.
